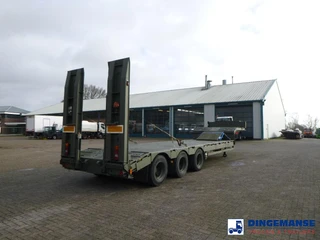

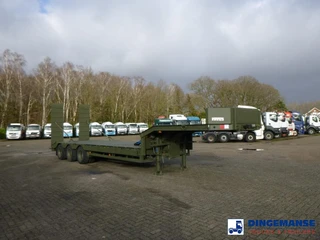

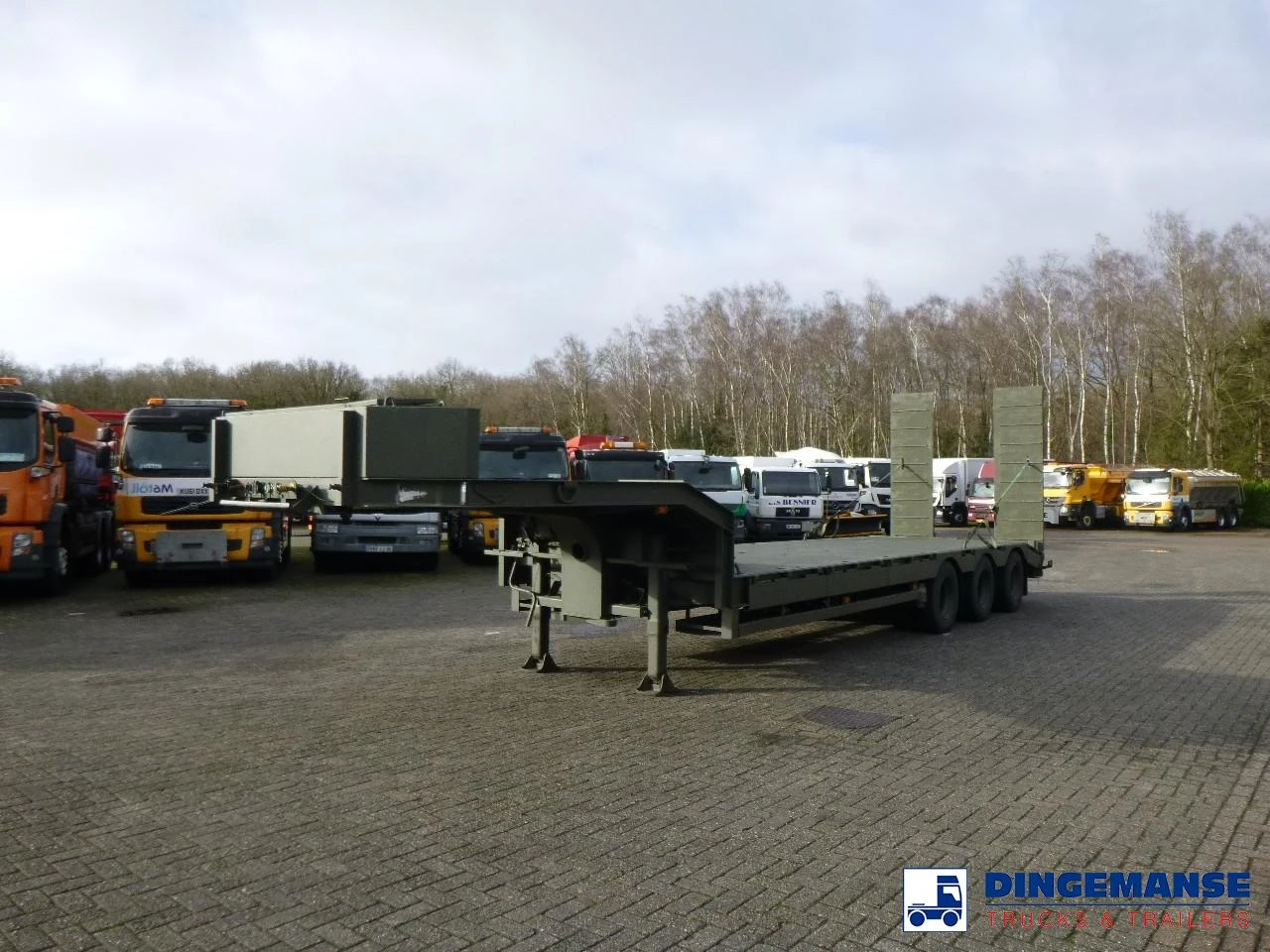

Broshuis 3-axle semi-lowbed trailer E-2130 / 73 t + ramps

Descripción

Chassis Diameter coupling pin / coupling plate: 2 inches Height of coupling pin / drawbar: 145 cm Structure Platform: ✓ Platform size: 880x250 cm Special Transport Hydraulic ramps: ✓ Length above axes: 880 cm Length of loading floor: 880 cm Length of ramps: 255 cm Length of swan neck: 315 cm Lowbed trailer: ✓ Max width: 300 cm Max. length: 880 cm Expandable: ✓ Adjustable driving plates: ✓ Tank Fuel: ✓ 3-axle semi-lowbed trailer with hydraulic ramps and power pack, ABS, Air suspension, Gigant axles, Drum brakes, Dual tyres 285/70R19.5, Steering rear axle (passive) // DIMENSIONS // Lowbed length 880 cm, Lowbed height 95 cm, Lowbed width 250 cm, Width extendable to 300 cm (2 x 22.5 cm), Kingpin height 145 cm, Gooseneck loading height 170 cm, Gooseneck length 315 cm, Ramp length 255 cm, Ramp width 75 cm each, Adjustable ramp position // Standard max. gross trailer weight 44000 kg (73000 kg at 12 mph) // Shipment dimensions 1240x250x335 cm // NON-EU VEHICLE, REQUIRES CUSTOMS CLEARANCE
