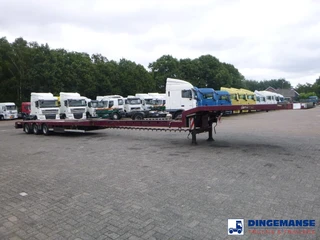

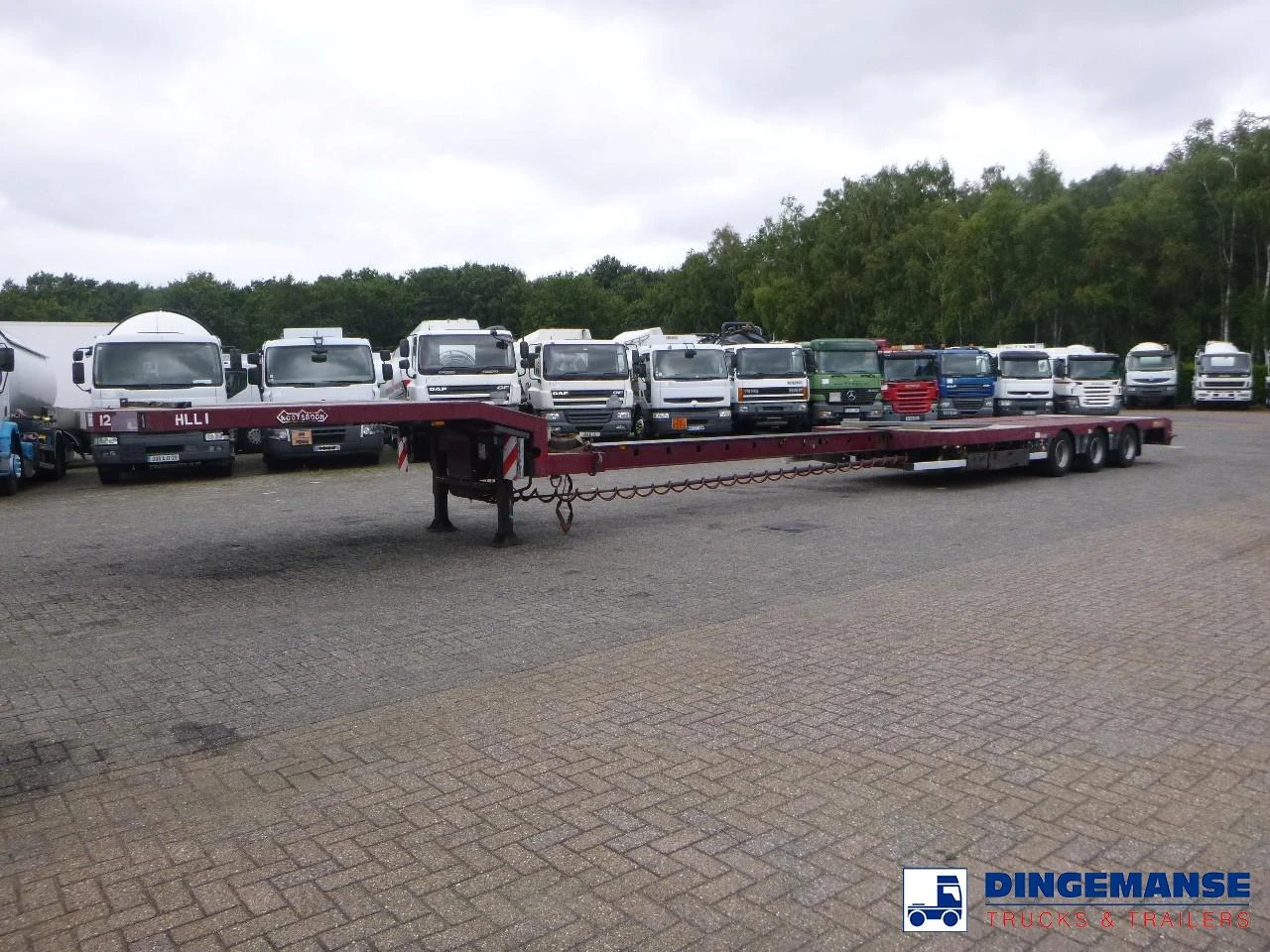

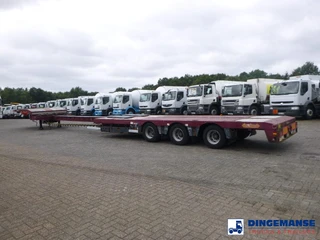

Nooteboom 3-axle semi-lowbed trailer extendable 14.5 m + ramps

Description

Chassis Chassis height: 90 cm Diameter coupling pin / coupling plate: 2 inches Height of coupling pin / drawbar: 125 cm Structure Dish height: 125 cm Platform: ✓ Special Transport Manual ramps: ✓ Length above axes: 900 cm Length of loading floor: min. 900 cm, max. 14500 cm Length of ramps: 155 cm Length of swan neck: 380 cm Lowbed trailer: ✓ Max width: 250 cm Max. length: 14500 cm Extendable: ✓ Tank Fuel: ✓ 3-axle semi-lowbed trailer with detachable manual ramps, Steering rear axle (3rd, passive steering), ABS, Air suspension, SAF axles, Dual tyres 245/70R17.5, Max. gross trailer weight 48000 kg, Max. gross trailer weight under UK special types provision: 62400 kg at 12 mph // DIMENSIONS // Load bed length min. 900 cm, max. 14500 (extends 550 cm), Load bed height 90 cm, Load bed width 250 cm, Gooseneck length 380 cm, Gooseneck height 150 cm, Kingpin height 125 cm, Kingpin diameter 2 inches (regular), Ramp length 155 cm, Ramp width 55 cm each // Shipment dimensions (not extended, ramps dismounted) 1300x250x150 cm
