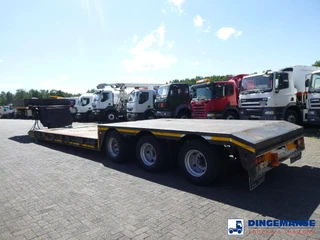

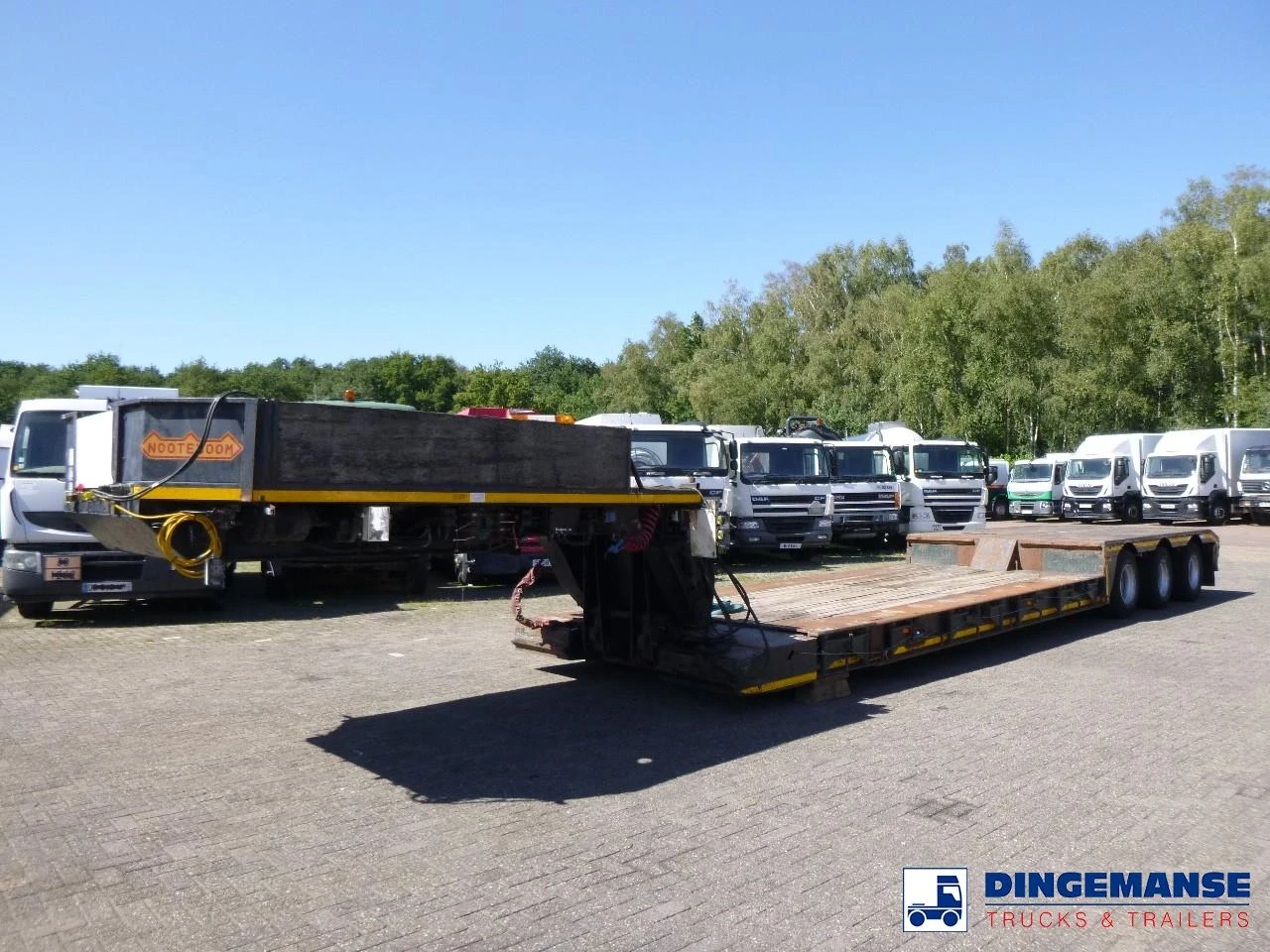

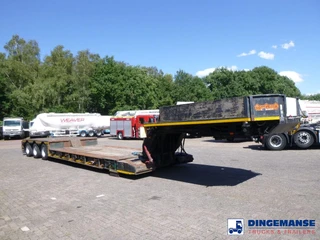

Nooteboom 3-axle lowbed trailer 33 t / extendable 8.5 m

Beschreibung

Chassis Chassis height: 65 cm Diameter trailer coupling / eye: 2 inches Height of coupling pin / drawbar: 130 cm Special Transport Detachable swan neck: ✓ Length above axes: 465 cm Length of loading floor: min. 600 cm, max. 855 cm (extends 255 cm Length of swan neck: 380 cm Lowbed trailer: ✓ Max width: 300 cm Max. length: 850 cm Expandable: ✓ Extendable: ✓ Tank Fuel: ✓ 3-axle lowbed trailer with removable gooseneck, Max. gross weight 33000 kg, 3 Active steering axles, Hydraulic suspension, Dual tyres 285/70R19.5, BPW axles, Drum brakes, NO ABS, Cable remote control // DIMENSIONS // Min. low bed length 600 cm, Max. low bed length 855 cm (extends 255 cm), Low bed height 65 cm, Low bed width 275 cm (extendable to 300 cm with outriggers), Length over axles: 465 cm, Height over axles: 105 cm, Gooseneck length: 380 cm, Gooseneck height: 172 cm, Kingpin height: 130 cm, Kingpin diameter: 2 inches, Shipment dimensions (not extended): 1550x275x215 cm
